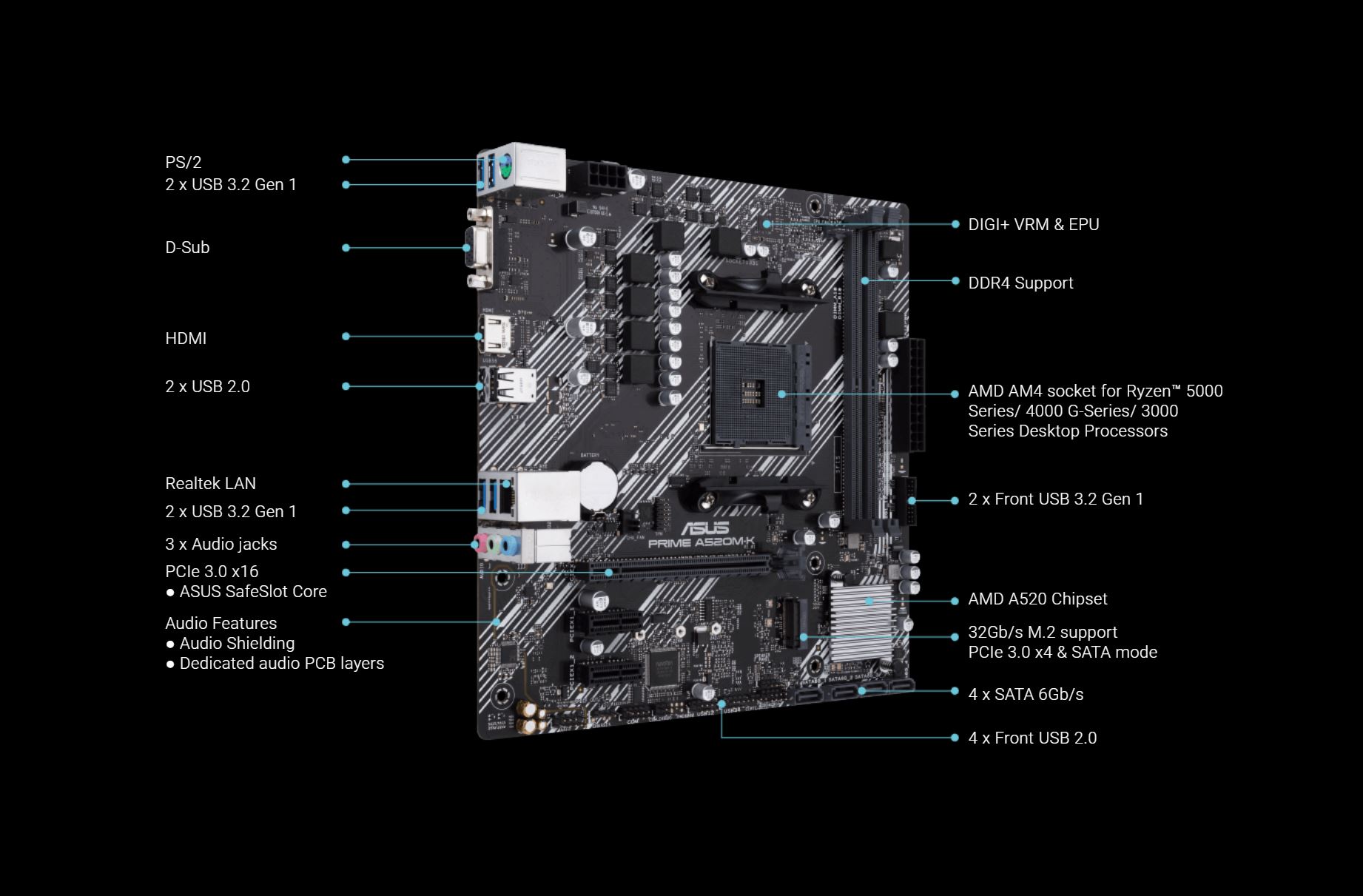

Socket
|
AMD AM4 Socket for AMD Ryzen 3000 series / 4000 G-series / 5000 series |
|
Memory
|
2x DDR4 DIMM Slots | Max Frequency : 4600MHz (OC) | Max Capacity : 64GB |
|
Slot
|
1x PCIe 3.0 x16 slot , 2x PCIe 3.0 x1 Slots |
|
Storage
|
1x M.2 Socket (M Key type 2242 / 2260 / 2280) PCIe 3.0 x4 , 4x SATA 6Gb/s Ports (Support RAID 0 , RAID 1 , RAID 10) |
|
Ports & Connectors
|
1x PS/2 Mouse / Keyboard Port , 1x HDMI , 1x VGA , 4x USB 3.2 Gen 1 Type-A , 2x USB 2.0 , 1x RJ-45 LAN Port , 3x Audio Jacks |
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS |
|
Form Factor
|
Micro ATX Form Factor |
